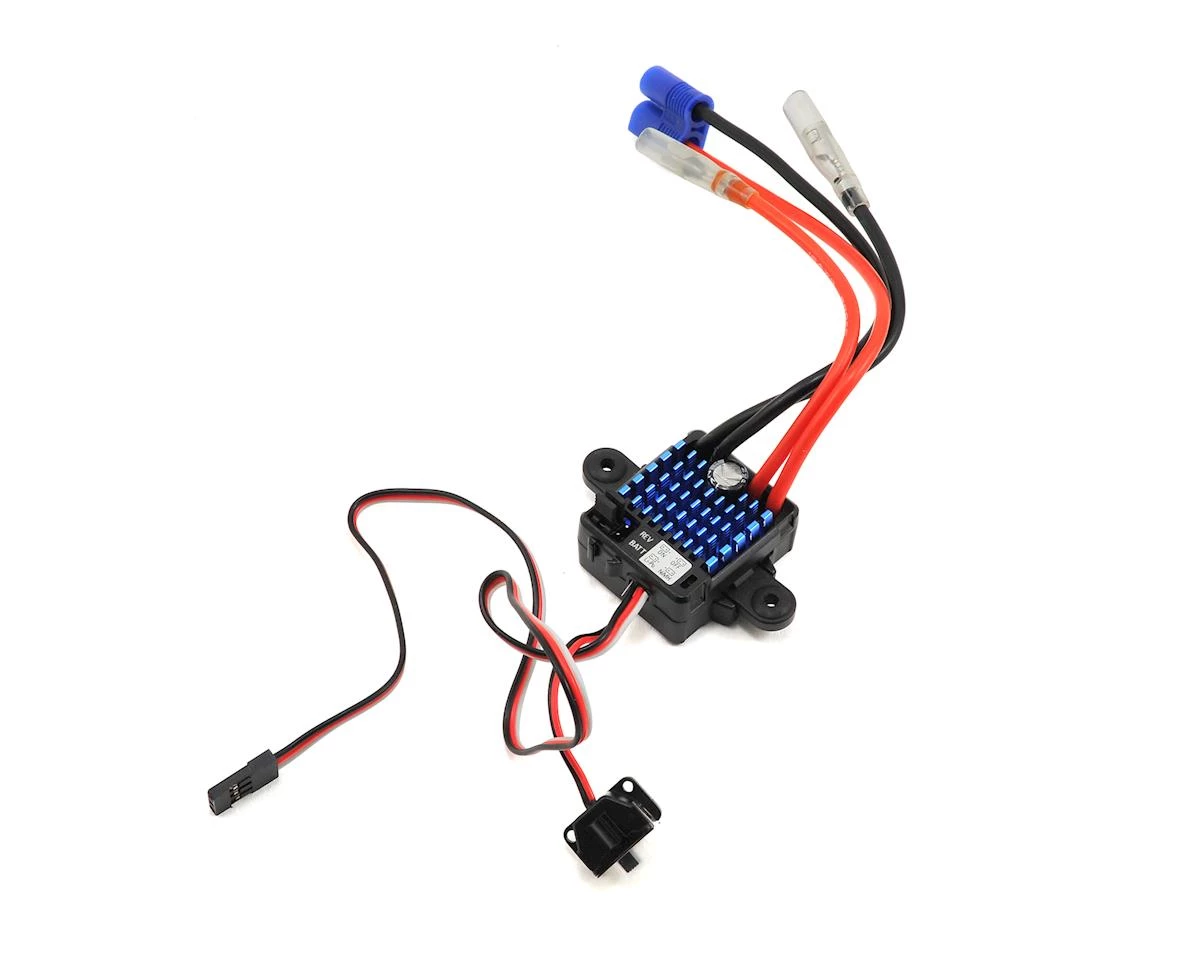

Dynamite 60A Marine Waterproof Brushed ESC

Dynamite’s 60A Marine Waterproof Brushed ESC has been built and optimized for everyday boating needs. The ESC is compatible with motors down to 12 turns and provides an easy to install solution for ESC replacement or upgrade. Pre-wired with an EC3 battery connector and RTR compatible motor bullets for easy installation.

Features:

• 2S LiPo compatible
• 5 to 7 Cell NiMH compatible

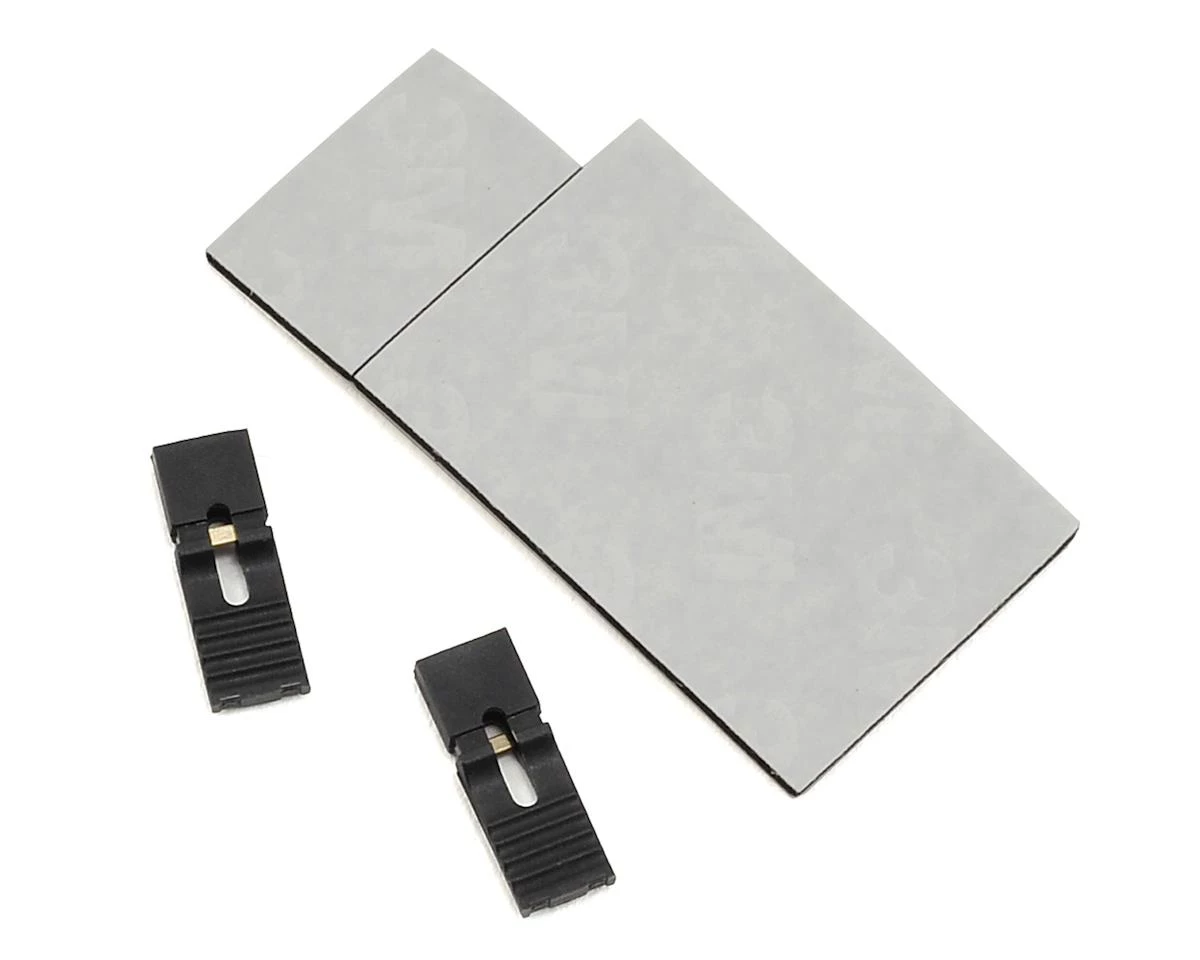

• Removable mounting tabs
• Small footprint for mounting flexibility
• LiPo Safety Cutoff

Specifications:
Continuous Current: Forward 60A, Reverse 30A
Momentary Peak Current: Forward 360A, Reverse 180A
Motor Limit: 12T
Motor Output Lead: 16awg, 4.5″ (115mm)
Dimensions: 37.5x37x18mm (56mm wide with tabs)
Weight: 1.41 oz (40g)
Battery Connector: Pre-wired EC3
BEC Voltage: 5V
Cell Limit: 2S LiPo, 5-7 cell NiMH
Low Voltage Cutoff: LiPo/NiMH/NiCd
Program Modes: Forward Brake and Reverse/Forward with Brake

This product was added to our catalog on October 19, 2015
